2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable

Single jacket ADSS Fiber Optical Cable

outdoor ADSS Fiber Optical Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

ADSS-SJ

Contact Us

Request A Quote
Product Details
Product Name:
All Dielectric Self Supporting Optical Cable
Fiber Count:
2-36 Fiber
Fiber Options:
G652D
Central Strength:
FRP
Structure:
Stranded PBT Loose Tube
Reinforcement:
Yarn/Kevlar
Out Sheath:
PE/AT
Cable Color:
Black Or Customized
Waterproof:
Yes
Application:
Telecom Communication
Payment & Shipping Terms
Minimum Order Quantity
1km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
1000km per week
Product Description

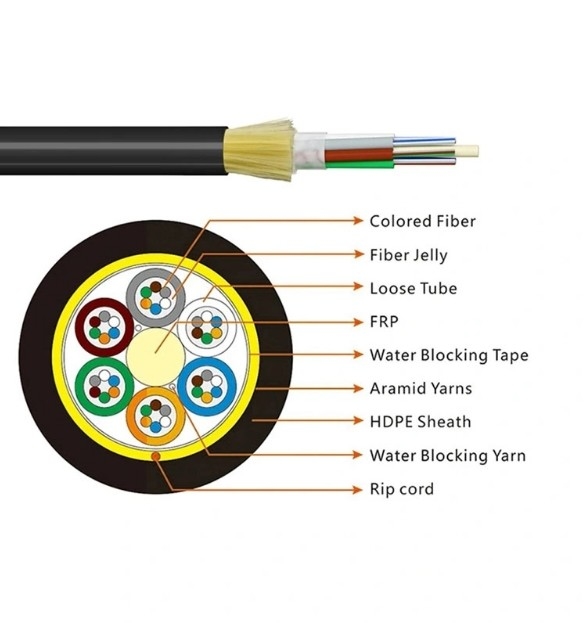

All Dielectric Self Supporting Aerial Optic Cable-Single sheath ADSS

  • Non-metal enhanced components
  • Loose tube layer dry type
  • Aramid yarn/Kevlar Reinforcement
  • PE outer sheath outdoor all dielectric optic cable

Application

  • The cable can be installed without shutting off the power.
  • Large span length and the largest span is up to 1000 meters
  • Good performance of tensile strength and temperature performance
  • Self-supporting Aerial installation especially for electric field
  • Structure can be customized for different spans.

Technical Parameter

Fiber Count 2-36
Outer Dia.(mm) 10.5
RST   7.5KN
MAT   3KN
Crush Resistance(N/100m) Long Term 1000
Short Term 300
Mini Bending
Radius(mm)
Dynamic 10D
Static 20D
Attenuation(dB/Km) 1310nm ≤0.36
1550nm ≤0.22
Operating temperature(℃) -40℃+70℃
N.W(kg/km) 85



Company Profile

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 0

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 1

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 2
Company Qualification

Our company has got many national approval certificates in the fields of

communications and optical fiber manufacturing.
2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 3
Exhibition Photos

Our Fiber Optic Cables  are exported to America, Europe, Middle East, Africa, Southeast Asia,

and other continents.
2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 4
Packaging & Shipping

The optical fiber and cable products we manufacture are widely sold in America, Europe,

the Middle East, Africa, Southeast Asia and other continents.

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 5

2-36 core Span 100 M PE AT jacket sheath G652D Single jacket outdoor ADSS Fiber Optical Cable 6
FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer in Chengdu Sichuan Porvince, China.
2.What is your fiber brand ?

We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?

Yes, small order is available.

We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, ISO14001

6.What is your delivery time?

Usually within 7-10 working days

7.What is your payment way?

T/T, L/C, Western Union and Paypal.

8.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.

OEM and ODM order highly welcome !
