Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC,CCC
Model Number:
GJYXCH/GJYXFCH 1/2 fiber
Contact Us

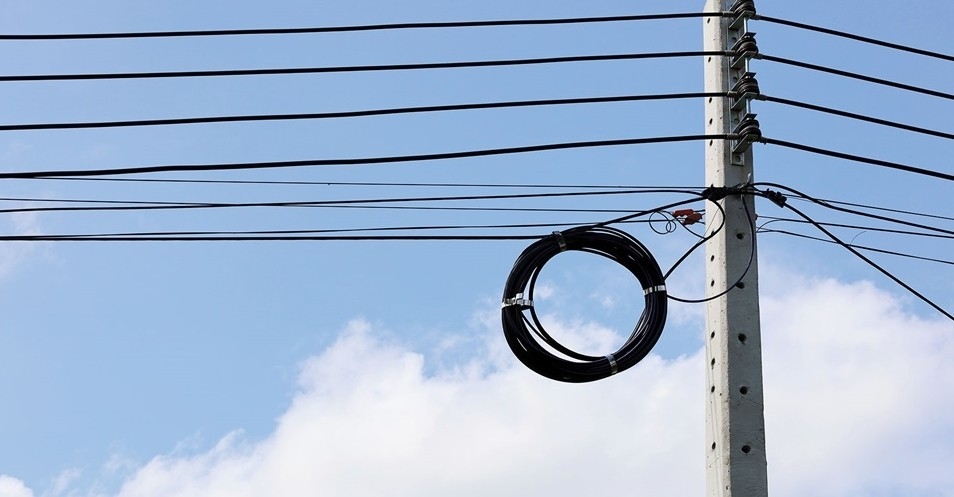

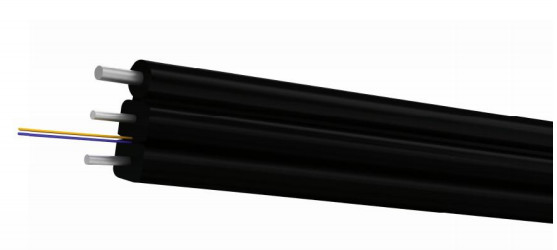

The Self-supporting FTTH drop cable is meticulously constructed with either one or two single-mode fibers. These fibers are precisely integrated within the cable structure. The cable is effectively protected by a dielectric strength member, which is specifically designed to offer reliable reinforcement and safeguard. This particular cable is highly suitable for direct aerial installation into the houses in FTTH projects, as it is engineered to meet the specific requirements and challenges of such installations. It is capable of withstanding various environmental conditions and ensuring stable and efficient signal transmission for seamless connectivity within the FTTH framework.The Self-supporting FTTH drop cable is meticulously constructed with either one or two single-mode fibers. These fibers are precisely integrated within the cable structure. The cable is effectively protected by a dielectric strength member, which is specifically designed to offer reliable reinforcement and safeguard. This particular cable is highly suitable for direct aerial installation into the houses in FTTH projects, as it is engineered to meet the specific requirements and challenges of such installations. It is capable of withstanding various environmental conditions and ensuring stable and efficient signal transmission for seamless connectivity within the FTTH framework.
Application
Technical Parameter
| Fiber Count | GJYXCH-1 | GJYXCH-2 | GJYXFCH-1 | GJYXFCH-2 | |
| Outer Dia.(mm) | 2.0*5.0±0.1 | 2.0*5.0±0.1 | 2.0*5.0±0.1 | 2.0*5.0±0.1 | |
| Tesile Resistance(N) | Long Term | 300 | 300 | 300 | 300 |
| short Term | 600 | 600 | 600 | 600 | |
| Crush Resistance(N/100m) | Long Term | 1000 | 1000 | 1000 | 1000 |
| Short Term | 2200 | 2200 | 2200 | 2200 | |
| Mini Bending Radius(mm) | Dynamic | 40 | 40 | 40 | 40 |
| Static | 20 | 20 | 20 | 20 | |
| Attenuation(dB/km) | 1310nm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| 1550nm | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
| Operation Temperature(℃) | -40℃-+60℃ | 40℃-+60℃ | -40℃-+60℃ | -40℃-+60℃ | |
| N.W(kg/km) | 20 | 20 | 18 | 18 | |
Company Profile
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.Yuantong has more than 200 staffs, of which 20% are senior engineers ,30% are mid-level employees.
Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.
FAQ
1. Are you the manufacturer or trader ?
We are manufacturer.
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable;
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
7-15 days for common fiber cables, 10-20 days for your customized requirements.
5. MOQ: what is your minimum quantity?
MOQ : 10KM
6. where will you sell to ?
worldwide.
7. Payment
TT bank transfer, western union
8. Shipping & Delivery
by Sea and by air
Send your inquiry directly to us
