GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

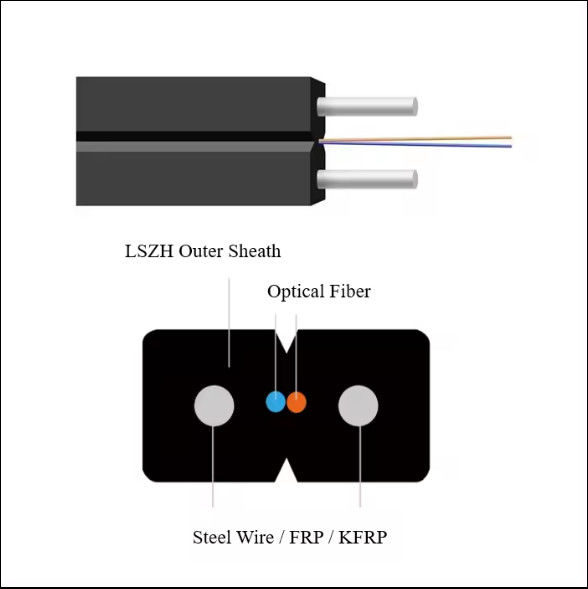

The GJXH 2 cores fiber optic cable features a central optical fiber with two parallel steel wires on both sides serving as reinforcing elements, enclosed in a low-smoke halogen-free flame-retardant sheath. This design offers a straightforward structure with lightweight construction and exceptional tensile resistance.
Applications
GJXH (Butterfly-type Introduced Optical Cable) is widely utilized across multiple industries for reliable fiber optic connectivity.
- Indoor Wiring: Suitable for residential, office, and commercial building cabling
- Communication Networks: Supports access networks and local area networks for high-speed data transmission
- Data Centers: Connects servers and storage devices to meet high-capacity data transfer demands
- Broadcasting and Television: Ensures high-quality video and audio signal transmission
- Industrial Automation: Provides stable data transmission for factory production lines and robot control systems
- Security and Surveillance: Enables real-time and remote monitoring through reliable video signal transmission
Technical Parameters
| Parameter |
GJXH-2 Specifications |
| Fiber Count |
2 |
| Outer Diameter (mm) |
2.0x3.0±0.1 |
| Tensile Resistance (N) |
Long Term: 60 | Short Term: 120 |
| Crush Resistance (N/100m) |
Long Term: 1000 | Short Term: 2200 |
| Minimum Bending Radius (mm) |
Dynamic: 40 | Static: 20 |
| Attenuation (dB/Km) |
1310nm: ≤0.4 | 1550nm: ≤0.3 |
| Operating Temperature (°C) |
-40°C to +60°C |
| Net Weight (kg/km) |
10 |
Company Profile
Sichuan Yuantong Communication Co., Ltd., a national key high-tech enterprise, is located in Chengdu's Southwest Airport Economic Development Zone, adjacent to Shuangliu International Airport and the airway expressway.
Our company specializes in the research, development, and manufacturing of various fiber optic cables, including indoor/outdoor fiber optic cables, power optical fiber cables, submarine optical cables, and special optical cables.
Company Qualifications
Exhibition Photos
Packaging & Shipping
Frequently Asked Questions
Q1: Do you offer OEM services?
A1: Yes, we are capable of producing according to your samples or technical drawings.
Q2: Can I negotiate the prices?
A2: Yes, we might consider providing discounts for multiple container loads of mixed goods.
Q3: Can I pay you a visit?
A3: Certainly, our factory is located in Chengdu, China. Please get in touch with us to make an appointment.
Q4: How can I obtain your catalogue and price list?
A4: Please inform us of your email or directly contact us through the website to acquire our catalogue and price list.
Q5: How much will the shipping cost be?
A5: It is contingent upon the size of your shipment and the shipping method. We will provide the charge to you as per your request.
Q6: What about your delivery time?
A6: Generally speaking, it will take 5 to 7 working days after receiving your advance payment. The specific delivery time is dependent on the items and the quantity of your order.
