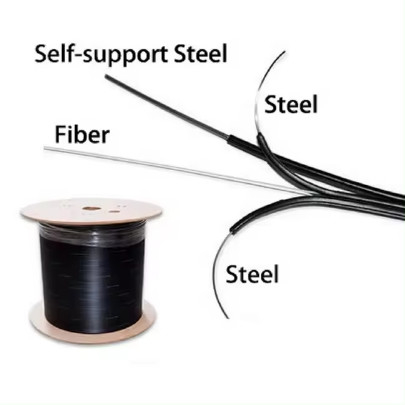

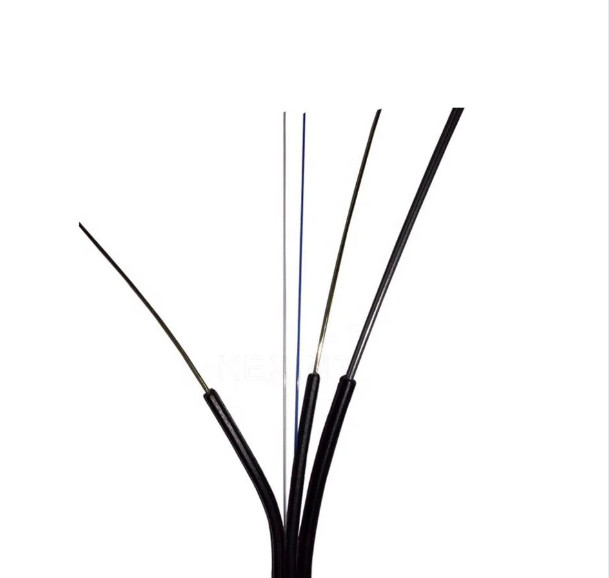

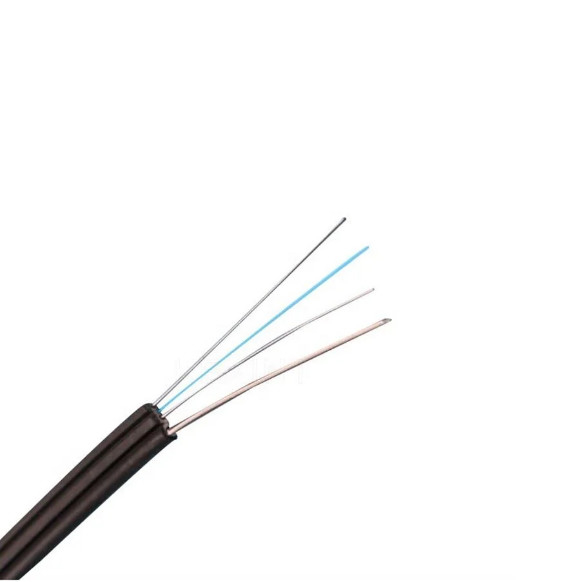

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor

GJYXCH FTTH Fiber Drop Cable

Indoor Outdoor FTTH Fiber Drop Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

GJYXCH 1/2 Cores

Contact Us

Request A Quote
Product Details
Fiber Count:
1-2 Fiber
Fiber Options:
G657A1, G657A2, G652D
Cable Strength Member:
Steel Wire
Cable Structure:
Tight Buffer Self-support FTTH Cable
Cable Type:
Drop Cable
Cable Color:
Black Or Customized
Application:
Indoor、Outdoor Aerial
Oem:
Supported
Payment & Shipping Terms
Minimum Order Quantity
1km
Price
negotiated
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
1000km per week
Product Description

Drop Fiber optic cables for telecommunication (Bow-type) are suitable for the optical fiber to the user (FTTH) network for introducing the section of the cable to users. They also apply to the Office (FTTO) and optical fiber to the building (FTTB), as well as other optical fiber access network users for introducing the section of the optical cable.
The drop FTTH cables have a flame-retardant jacket and supporting wire. There are reinforcing members inside the cables to support the entire structure. The entire cable complies with the RoHS standards and contains no harmful components. Generally speaking, it is a highly recommended FTTH drop cable for use in fiber-to-the-home projects, saving time and cost.

Application

  • Used as access building cables.
  • Used in horizontal and vertical cablings, especially for FTTH.
  • Indoor cablings under carpets and along corners.

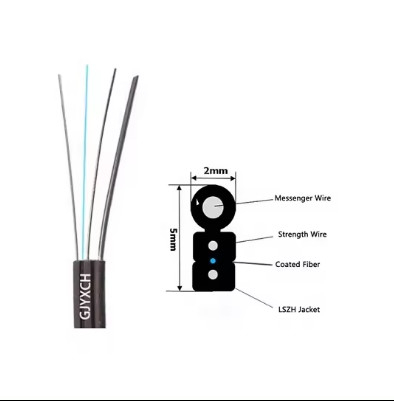

Technical Parameter

Fiber Count GJYXCH-1/GJYXCH-2
Outer Dia.(mm) 2.0x5.0±0.1
Tesile Resistance(N) Long Term 300
short Term 600
Crush Resistance(N/100m) Long Term 1000
Short Term 2200
Mini Bending
Radius(mm)
Dynamic 40
Static 20
Attenuation(dB/Km) 1310nm ≤0.4
1550nm ≤0.3
Operating temperature(℃) -40℃~+60℃
N.W(kg/km) 20


Company Profile

Sichuan Yuantong Communication Co., Ltd., a nationally recognized key high-tech enterprise of significant importance, is strategically located in the enchanting and prosperous "land of abundance" - Chengdu. Specifically, it is nestled within the Southwest Airport Economic Development Zone, conveniently adjacent to the bustling Shuangliu International Airport and the highly efficient airway expressway.

Our company is wholeheartedly dedicated to the meticulous research, development, and manufacture of a wide range of various types of fiber optic cables. These encompass, but are not limited to, indoor and outdoor fiber optic cables, power optical fiber cables, submarine optical cables, and specialized optical cables customized for specific and unique applications, among others.
A complete set of advanced test equipment ensures that each link, from raw materials to perfect products, is effectively controlled.

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 0

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 1

Company Qualification

Company has got many national approval certificates,such as ISO9001 quality management, ISO14001 environmental management, health management, TLC and other nationally recognized system certifications

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 2

Exhibition Photos

We have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators.

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 3

Packaging & Shipping

Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 4

Self-Supporting FTTH Fiber Optic Drop Cable GJYXCH 1/2 Cores Indoor Outdoor 5

FAQ

1.Are you the actual factory?

Yes, we are the actual factory with 20 years' history.
2.What is your fiber brand?

Fiber brand: YTTX
3.What are your main products?

Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop cables; ADSS;Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4.What is the guarantee period for product quality?

The guarantee period for fiber optic cable is 25 years.
5.Do you have certificates for raw materials?

We have established long-term cooperative relationships with qualified ISO9001 and ROHS raw material suppliers.
6.What is your delivery time?

Generally, it takes 5 to 7 working days after receiving your advance payment. The specific time depends on the items and the quantity of your order.
