Butterfly shaped introduction of optical cable

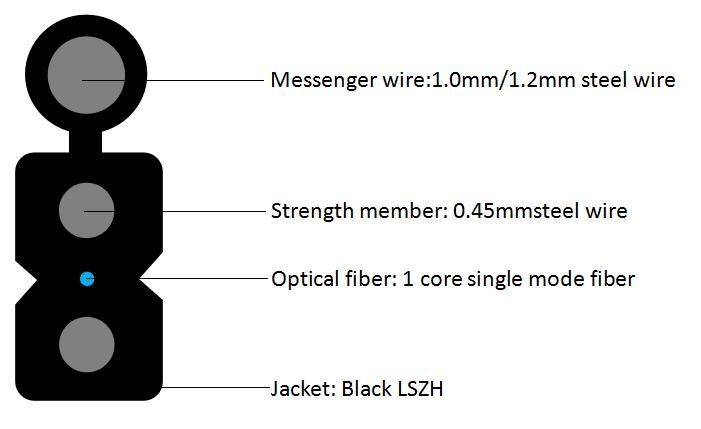

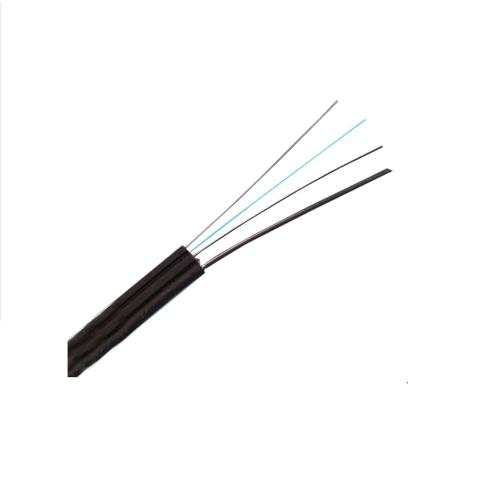

Product Description: GJYXCH [Metal Reinforcement, LSZH Sheath, Galvanized Steel Rope Hanging Wire, Self Supporting Butterfly shaped Introduction Optical Cable] The optical cable structure is to place the optical fiber between two parallel reinforcement pieces, and at the same time, place a metal galvanized steel rope hanging wire in a parallel position at one end, and then extrude a layer of flame-retardant polyolefin sheath (or other flame-retardant plastics) to form the cable.

Installation method: indoor and outdoor wiring, etc.

⫸ Application scope: Suitable for FTTX system wiring, as well as prefabricated tail fibers, etc.

Execution standard: YD/T 1997-2022 Butterfly shaped fiber optic cable for access network.

Product features: ① Special bending resistant optical fiber provides large bandwidth and good communication transmission characteristics; ② Two parallel FRP or steel wires have good compressive performance to protect the optical fiber; ③ Unique groove design, easy to separate, convenient to connect, simplifies installation and maintenance; ④ Small outer diameter, light weight, simple structure, strong practicality, and affordable price; ⑤ Most outer sheath materials use low smoke halogen-free (LSZH) flame-retardant outer sheath, which has a smooth outer layer and is environmentally friendly and odorless; ⑥ Butterfly shaped fiber optic cable is the best choice for FTTX fiber to the home system cabling cable; ⑦ The product itself includes a load-bearing suspension line, which can be directly overhead laid within a short span (recommended<50M) range outdoors; ⑧ Galvanized steel rope has good corrosion resistance, and the entire optical cable has good flexibility. The optical cable is easy to bend and has good torsional performance.
