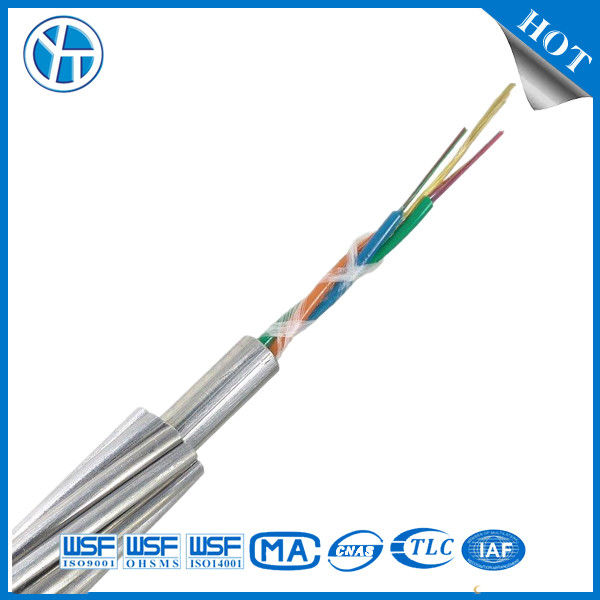

Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire

  • Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire
  • Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire
  • Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire
  • Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire
Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC，CCC
Model Number OPGW
Minimum Order Quantity 20km
Price usd 5.5
Packaging Details wooden drum
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Type G652d Fiber Count 12-48core
Tube AL Tube Material Aluminium,galvanized Steel,Aluminium Alloy/Aluminium Clad Steel
Application Overhead,self Support Surface Smooth
Package Drum With Surdace Span 100m/150m/200m/400m
Item Overhead Line Fittings Oem Provided
High Light

24 Core optical power ground wire

,

opgw optical power ground wire

,

opgw adss cable
Leave a Message
Product Description

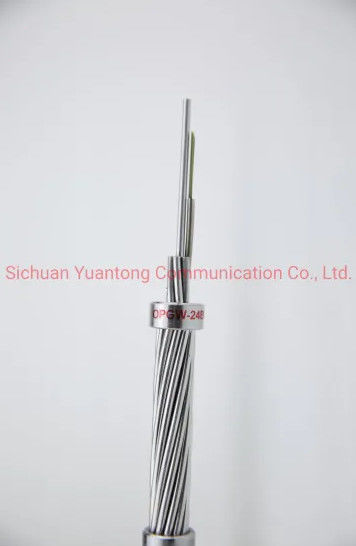

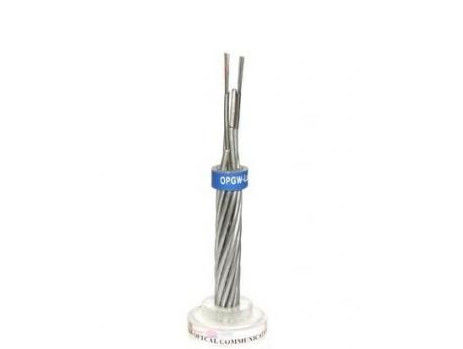

OPGW Typical Designs of Central Stainless Steel Loose Tube

  • OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines.

    The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Power Communication Opgw Adss Cable , 24 Core Optical Power Ground Wire 0

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options



Applications:

● Replacement of existing ground wires and reconstruction of old lines.

● Applicable to low-grade lines, such as GJ50/70/90 and etc.



Main Features:

● Small cable diameter, light weight, low additional load to the tower;

● The steel tube locates at the center of the cable, no second mechanical fatigue damage.

● Low resistance to side pressure, torsion and tensile (single layer).





Technical Parameter

Typical design for Single Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-32(40.6;4.7) 12 7.8 243 40.6 4.7
OPGW-42(54.0;8.4) 24 9 313 54 8.4
OPGW-42(43.5;10.6) 24 9 284 43.5 10.6
OPGW-54(55.9;17.5) 36 10.2 394 67.8 13.9
OPGW-61(73.7;175) 48 10.8 438 73.7 17.5
OPGW-61(55.1;24.5) 48 10.8 358 55.1 24.5
OPGW-68(80.8;21.7) 54 11.4 485 80.8 21.7
OPGW-75(54.5;41.7) 60 12 459 63 36.3
OPGW-76(54.5;41.7) 60 12 385 54.5 41.7



Typical design for Double Layer:

Specification

 Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-96(121.7;42.2) 12 13 671 121.7 42.2
OPGW-127(141.0;87.9) 24 15 825 141 87.9
OPGW-127(77.8;128.0) 24 15 547 77.8 128
OPGW-145(121.0;132.2) 28 16 857 121 132.2
OPGW-163(138.2;183.6) 36 17 910 138.2 186.3
OPGW-163(99.9;213.7) 36 17 694 99.9 213.7
OPGW-183(109.7;268.7) 48 18 775 109.7 268.7
OPGW-183(118.4;261.6) 48 18 895 118.4

261.6
