Aerial Optical Fiber Ground Wire , 400m 12 Core Opgw Cable In Transmission Line

Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC,CCC
Model Number OPGW
Minimum Order Quantity 20km
Price usd 5.5
Packaging Details wooden drum
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Type G652d Fiber Count 12 Core
Tube AL Tube Material Aluminium,galvanized Steel,Aluminium Alloy/Aluminium Clad Steel
Application Overhead,self Support Surface Smooth
Package Drum With Surdace Span 100m/150m/200m/400m
Item Overhead Line Fittings Oem Provided
High Light

12Core optical fiber ground wire

,

opgw optical fiber ground wire

,

Aerial opgw cable in transmission line

Leave a Message
Product Description

Optical Fiber Composite Ground Wire 12 Core Single Mode Uni-Tube Aerial Opgw Cable



Description:

OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.



Application:

Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.



Features:

1. Up to 144 fibers

2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.

3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

4. Optical fibers are protected by stainless steel tubes.

5. Excellent security, good bullet resist performance.

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.



NO. Subject Unit Technical parameter
1 Optic fiber type / G.652D
2 Numbers of optic fiber cores Cores 96/128
3 Attenuation characteristics 1310nm(dB/km) ≤0.35
1550nm(dB/km) ≤0.22
4 Cable external diameter mm ≤12.8
5 Weight per unit length of optic cable kg/km ≤502
6 Total cross section mm² 79.38
Cross section of aluminum clad steel wire mm² 79.38
7 Rate tensile strength RTS kN 62.0
8 Elastic modulus GPa 132
9 Linear expansion coefficient ×10-6/℃ 13.8
10 20℃ DC resistance Ω/km ≤0.740
11 Shortcut current(0.5s,20℃~200℃) kA 9.21
12

Allowable short circuit current capacity

(0.5s,20℃~200℃)

kA².S ≥42.4
13 Maximum allowable temperature 200
14 Maximum allowable tension(40%RTS) kN 24.80
15 Annual average operatingtension(25%RTS) kN 15.50
16 Minimum allowable bending radius operation:mm 15D
construction:mm 20D
17 Storage installation temperature Storage(℃) -40~+80
Installation(℃) -10~+50

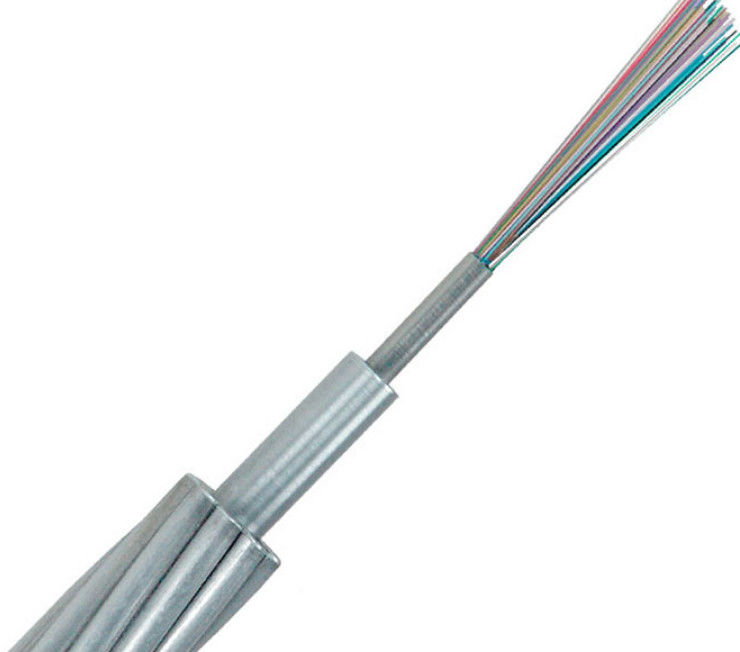

Aerial Optical Fiber Ground Wire , 400m 12 Core Opgw Cable In Transmission Line 0

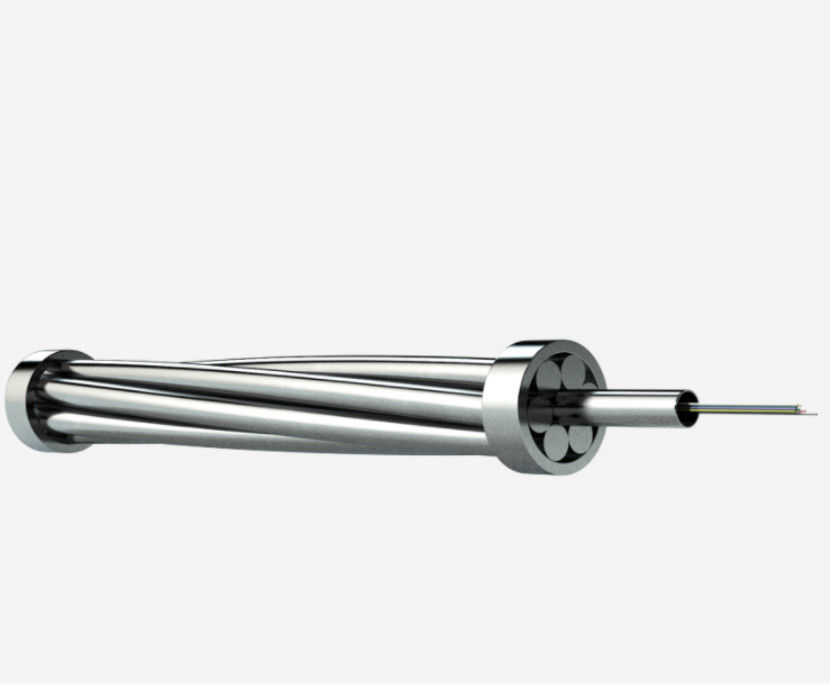

Aerial Optical Fiber Ground Wire , 400m 12 Core Opgw Cable In Transmission Line 1

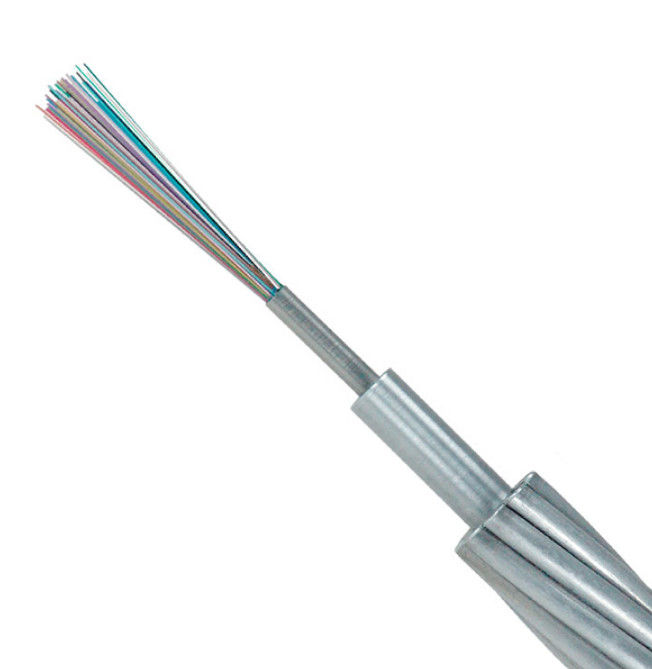

Aerial Optical Fiber Ground Wire , 400m 12 Core Opgw Cable In Transmission Line 2Aerial Optical Fiber Ground Wire , 400m 12 Core Opgw Cable In Transmission Line 3
