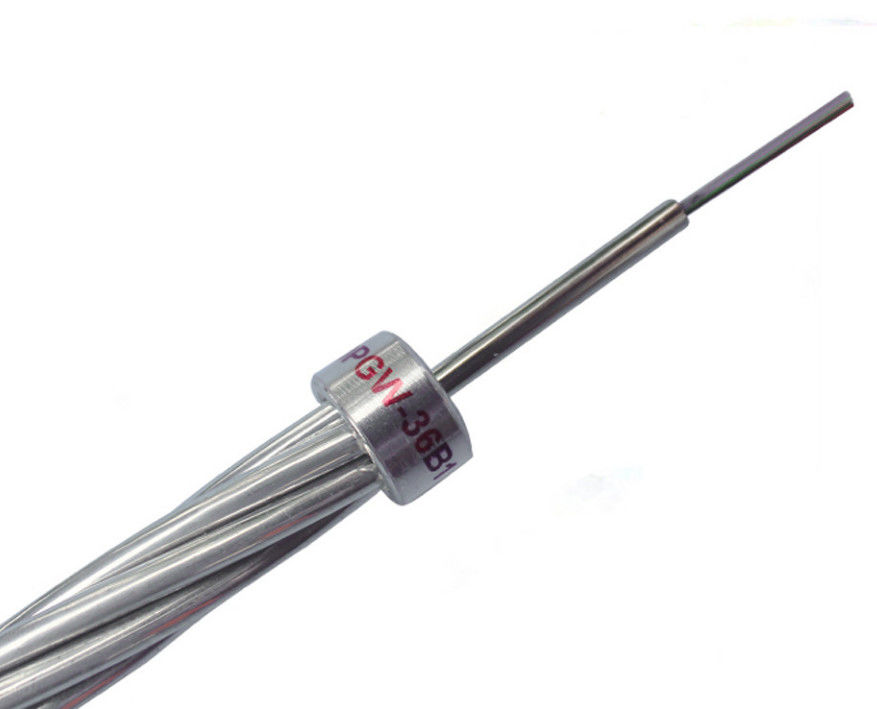

36 Core Single Mode Uni-Tube OPGW Fiber Optic Cable For Aerial
| Place of Origin | china |
|---|---|
| Brand Name | YUANTONG |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | usd 5.5 |
| Packaging Details | wooden drum |
| Delivery Time | within 7 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | G652d | Fiber Count | 36 Core |
|---|---|---|---|
| Tube | AL Tube | Material | Aluminium,galvanized Steel,Aluminium Alloy/Aluminium Clad Steel |
| Application | Overhead,self Support | Surface | Smooth |
| Package | Drum With Surdace | Span | 100m/150m/200m/400m |
| Item | Overhead Line Fittings | Oem | Provided |
| High Light | 36 Core OPGW Fiber Optic Cable,aerial OPGW Fiber Optic Cable,OPGW aerial optical fiber cable |
||
Product Description

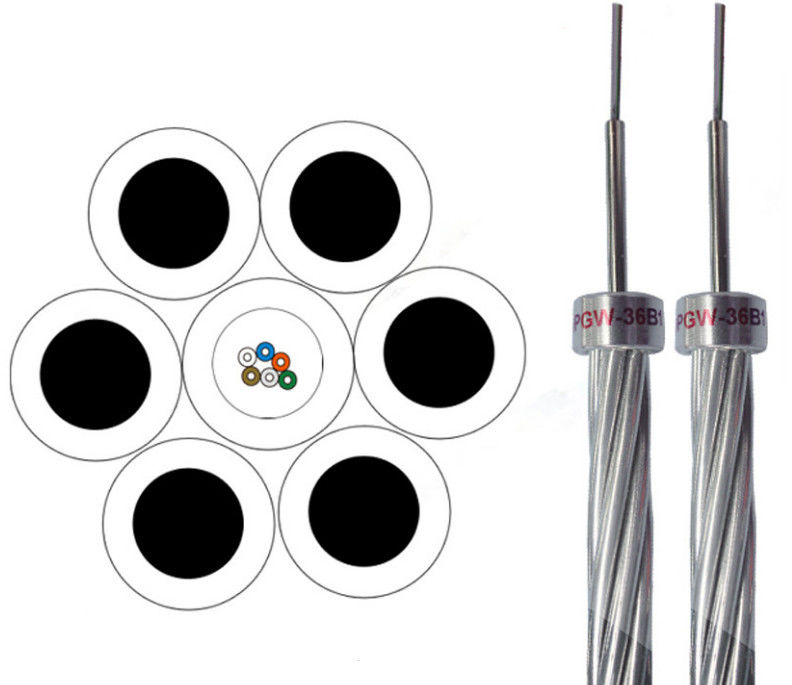

Optical Fiber Composite Ground Wire 36 Core Single Mode Uni-Tube Aerial Opgw Cable
Description:
OPGW Cable, Optical Fiber Composite Overhead Ground Wire, also known as Fiber Composite Overhead line. The optical fiber is placed in the ground line of overhead high voltage transmission line and used to form the optical fiber communication network on the line.
This structure has the double function of ground wire and communication, commonly known as OPGW optical cable.
Application:
Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.
Features:
1. Up to 144 fibers
2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4. Optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resist performance.

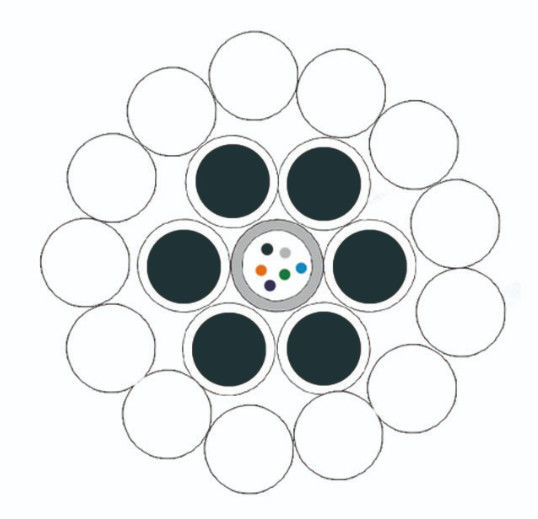

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.
| NO. | Subject | Unit | Technical parameter |
| 1 | Optic fiber type | / | G.652D |
| 2 | Numbers of optic fiber cores | Cores | 96/128 |
| 3 | Attenuation characteristics | 1310nm(dB/km) | ≤0.35 |
| 1550nm(dB/km) | ≤0.22 | ||
| 4 | Cable external diameter | mm | ≤12.8 |
| 5 | Weight per unit length of optic cable | kg/km | ≤502 |
| 6 | Total cross section | mm² | 79.38 |
| Cross section of aluminum clad steel wire | mm² | 79.38 | |
| 7 | Rate tensile strength RTS | kN | 62.0 |
| 8 | Elastic modulus | GPa | 132 |
| 9 | Linear expansion coefficient | ×10-6/℃ | 13.8 |
| 10 | 20℃ DC resistance | Ω/km | ≤0.740 |
| 11 | Shortcut current(0.5s,20℃～200℃) | kA | 9.21 |
| 12 |
Allowable short circuit current capacity (0.5s,20℃～200℃) |
kA².S | ≥42.4 |
| 13 | Maximum allowable temperature | ℃ | 200 |
| 14 | Maximum allowable tension(40%RTS) | kN | 24.80 |
| 15 | Annual average operatingtension(25%RTS) | kN | 15.50 |
| 16 | Minimum allowable bending radius | operation:mm | 15D |
| construction:mm | 20D | ||
| 17 | Storage installation temperature | Storage(℃) | -40～+80 |
| Installation(℃) | -10～+50 |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
