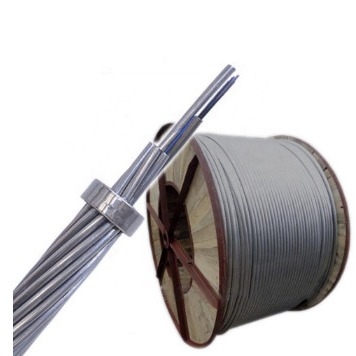

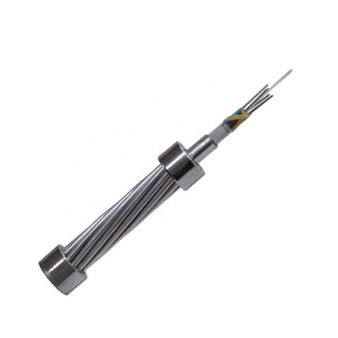

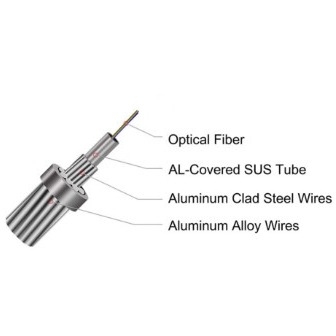

48 Core Optical Fiber Positioner Communication OPGW Cable

  • 48 Core Optical Fiber Positioner Communication OPGW Cable
  • 48 Core Optical Fiber Positioner Communication OPGW Cable
  • 48 Core Optical Fiber Positioner Communication OPGW Cable
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number Opgw-48 Core
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO OPGW Core Number 48 Core
Place Of Origin China Fiber Type G652D/G657A1/G657A2
Custom Yes Packing Wooden Reel
Application Networking Keyword Outdoor Fiber Cable
Specification Customized Strength Member Central Steel Wire
High Light

Communication OPGW Cable

,

48 Core Optical Fiber OPGW Cable

,

G652D OPGW Fiber Optic Cable
Leave a Message
Product Description
48 core optical fiber positioner communication OPGW cable
Product Description

OPGW is an outdoor optical fiber cable suitable for pipeline and overhead applications. We provide 2-core to 12 core OPGW optical cables. Both single-mode and multimode types are available.

Application

260 um of fiber is placed in a loose tube made of high modulus plastic. The pipe is filled with waterproof filling compound, and the pipe is longitudinally wound with a layer of corrugated steel strip. Water blocking material is used between corrugated steel strip and loose sleeve to keep the cable tight and waterproof. Two parallel steel wires are placed on both sides of the steel strip. PE sheath shall be adopted for cables.


Feature

1. Appropriate design for low dispersion and attenuation;



2. Precisely control the excess length of optical fiber and unique stranding process, so that the optical cable has excellent mechanical performance and environmental performance;



3. Corrugated steel tape armoring makes the optical cable have good moisture-proof and compression resistance;



4. Operating temperature of optical cable: -40~+60 ℃



Cable Parameters
Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 260µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Technical Parameter
Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D



48 Core Optical Fiber Positioner Communication OPGW Cable 0

48 Core Optical Fiber Positioner Communication OPGW Cable 1

48 Core Optical Fiber Positioner Communication OPGW Cable 2

48 Core Optical Fiber Positioner Communication OPGW Cable 3

48 Core Optical Fiber Positioner Communication OPGW Cable 4










FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
